API One key per system, signed webhooks

Your calls, wired into the tools you already run.

With the CRM add-on, every answered outside call is logged in HubSpot or Salesforce. Missed calls and voicemails ping Slack or Google Chat. Each desk phone fetches its own settings. And a REST API with signed webhooks puts the rest in your own code.

Book a demo See the API in three languages

Yealink, Polycom, Grandstream HubSpot, Salesforce Slack, Google Chat

Pick what happens on a callLive demo

Choose an event and see who hears about it.

Your webhookSigned JSON with the caller, the line they dialed and the hang-up cause.

Your CRMLogged as a missed call, or turned into a follow-up task by a workflow automation.

Chat channelA message in the channel the moment it happens, with the number and the line.

On the wirecall.missed from +15125550142 24 s signed X-4voice-Signature

CRM and chat alerts are add-ons, switched on per company.

300/minRequests a minute for each API key, with a revocable key for every system.

10Webhook URLs per company, each one signed with its own secret.

8Signed events: calls, voicemail, fax, surveys, keywords and number ports.

6Tries for every event, backed off from 30 seconds up to 6 hours.

Connections

Connect the tools your team already opens.

CRM, chat, calendars, identity and your own code, wired to every call. Filter by name or by topic and see exactly what each connection does.

All 247 features

Showing 24 of 24

Add-ons are switched on per company by 4voice.

REST API

Your calls, voicemails and contacts, one request away.

A company REST API with a key for each system. Read calls, voicemails with transcripts, extensions, queues and contacts. Place a call. Pause a recording. Every request is scoped to your company.

Read calls · curl

curl -H "Authorization: Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY" \
  "https://acme.projectpbx.net/api/company/v1/calls?direction=inbound&since=2026-10-01"

Inbound calls since 1 October, oldest first. Carry on from next_after_id for the next page.

Place a call · curl

curl -X POST "https://acme.projectpbx.net/api/company/v1/calls" \
  -H "Authorization: Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY" \
  -H "Content-Type: application/json" \
  -d '{"extension": "101", "to": "5125550143"}'

Answers 202 Accepted. The extension rings first; pick up and the number is dialed.

Check a webhook · shell

# X-4voice-Signature: t=1790000000,v1=<hex>
T=1790000000
BODY='{"id":"evt_…","type":"call.missed", …}'
printf '%s.%s' "$T" "$BODY" | openssl dgst -sha256 -hmac "EXAMPLE_SECRET_NOT_REAL"
# the hex it prints must equal v1

Recompute the HMAC of the timestamp and the raw body, then compare. Turn away anything older than 5 minutes.

Read calls · JavaScript

const res = await fetch(
  "https://acme.projectpbx.net/api/company/v1/calls?direction=inbound&since=2026-10-01",
  { headers: { Authorization: "Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY" } }
);
const { calls, next_after_id } = await res.json();
const missed = calls.filter((c) => c.missed);
console.log(`${missed.length} missed, read on from ${next_after_id}`);

Inbound calls since 1 October, oldest first. Carry on from next_after_id for the next page.

Place a call · JavaScript

const res = await fetch("https://acme.projectpbx.net/api/company/v1/calls", {
  method: "POST",
  headers: {
    Authorization: "Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY",
    "Content-Type": "application/json",
  },
  body: JSON.stringify({ extension: "101", to: "5125550143" }),
});
console.log(res.status, await res.json()); // 202, then your phone rings

Answers 202 Accepted. The extension rings first; pick up and the number is dialed.

Check a webhook · Node.js

import { createHmac, timingSafeEqual } from "node:crypto";

export function verify(secret, header, rawBody) {
  const p = Object.fromEntries(header.split(",").map((x) => x.split("=", 2)));
  const mac = createHmac("sha256", secret).update(`${p.t}.${rawBody}`).digest("hex");
  const fresh = Math.abs(Date.now() / 1000 - Number(p.t)) < 300;
  return fresh && mac.length === p.v1.length &&
    timingSafeEqual(Buffer.from(mac), Buffer.from(p.v1));
}

Recompute the HMAC of the timestamp and the raw body, then compare. Turn away anything older than 5 minutes.

Read calls · Python

import requests

r = requests.get(
    "https://acme.projectpbx.net/api/company/v1/calls",
    params={"direction": "inbound", "since": "2026-10-01"},
    headers={"Authorization": "Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY"},
    timeout=10,
)
data = r.json()
missed = [c for c in data["calls"] if c["missed"]]
print(len(missed), "missed; read on from", data["next_after_id"])

Inbound calls since 1 October, oldest first. Carry on from next_after_id for the next page.

Place a call · Python

import requests

r = requests.post(
    "https://acme.projectpbx.net/api/company/v1/calls",
    headers={"Authorization": "Bearer 4vk_EXAMPLE_NOT_A_REAL_KEY"},
    json={"extension": "101", "to": "5125550143"},
    timeout=10,
)
print(r.status_code, r.json())  # 202, then your phone rings

Answers 202 Accepted. The extension rings first; pick up and the number is dialed.

Check a webhook · Python

import hmac, hashlib, time

def verify(secret, header, body):          # body: the raw bytes
    p = dict(x.split("=", 1) for x in header.split(","))
    mac = hmac.new(secret.encode(), p["t"].encode() + b"." + body,
                   hashlib.sha256).hexdigest()
    return (hmac.compare_digest(mac, p["v1"])
            and abs(time.time() - int(p["t"])) < 300)

Recompute the HMAC of the timestamp and the raw body, then compare. Turn away anything older than 5 minutes.

What comes back

{
  "calls": [{
    "call_id": "6f1c0a1e-…", "direction": "inbound",
    "from": "+15125550142", "from_name": "Big Customer Inc",
    "to": "100", "did": "15125550100", "extension": "101",
    "started_at": "2026-10-01T14:02:11Z",
    "answered_at": null,
    "ended_at": "2026-10-01T14:02:35Z",
    "duration": 24, "talk_seconds": 0, "answered": false,
    "missed": true, "blocked": null, "spam": null,
    "hangup_cause": "NO_ANSWER", "id": 4821
  }],
  "next_after_id": 4821,
  "has_more": false
}

// 202 Accepted: your phone is ringing
{
  "call_uuid": "b1f5…",
  "extension": "101",
  "to": "5125550143"
}

// true: the signature matches and the timestamp is under 5 minutes old,
// so a replayed request is turned away.

Example keys and addresses only. Every system gets its own key, shown once and revocable. Webhooks

One key per system

Shown once, revocable, with its last use stamped. Revoke one and the rest keep working.

Scoped to your company

Every request sees only your own calls, voicemails, extensions, queues and contacts.

Read, or read and write

Read-only keys for reports and dashboards. Read-and-write keys can add, change and remove contacts.

Oldest first, read on from the last id

Calls arrive oldest first. Pass after_id and you carry on exactly where you stopped.

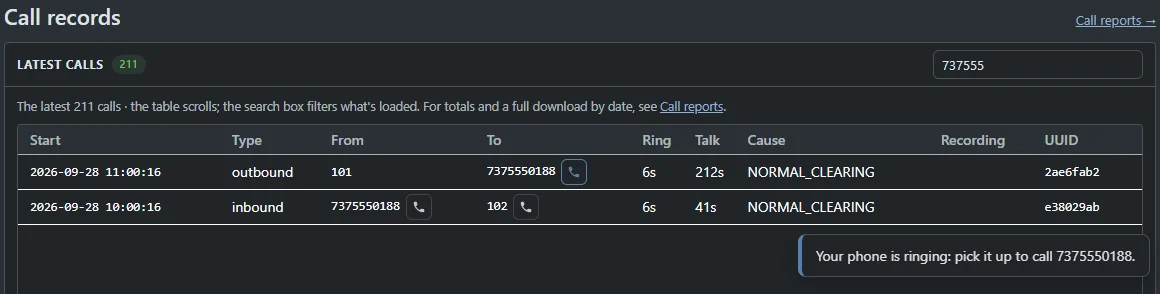

Place a call

POST /calls rings an extension first, then dials. Your caller ID, call limits and recording rules apply.

Pause a recording

While an agent takes a payment, one call pauses the recording and another resumes it.

The endpoints

Bearer key in the Authorization header. Everything is JSON, and errors come back as {"detail": "…"}. Base address https://<company>.projectpbx.net/api/company/v1

GET
/Who this key is and which events exist
GET
/callsCalls, oldest first; read on with after_id
GET
/calls/{id}One call
GET
/voicemailsNewest first, with transcripts
GET
/extensionsExtensions and their names
GET
/queuesThe wallboard's numbers for each queue
GET
/contactsThe phonebook, searchable
POST
/contactsAdd a contact (read-and-write keys)
PUT
/contacts/{id}Change a contact; fields you leave out keep their value
DELETE
/contacts/{id}Remove a contact
POST
/callsClick-to-call: your phone rings, then it dials
POST
/calls/{uuid}/recordingPause or resume a live recording
POST
/remindersSchedule an appointment reminder
GET
/reminders/{id}How a reminder went, from pending to confirmed

Signed webhooks

Hear every call the moment it happens.

Eight events, signed and delivered to up to 10 HTTPS URLs. Pick one to see the JSON your server receives.

Events

An incoming call that nobody answered and that was not blocked. It fires the moment the call record lands.

X-4voice-Event: call.missed
X-4voice-Delivery: 8841
X-4voice-Signature: t=1790000000,v1=9c2e…

{
  "id": "evt_3b1f…", "type": "call.ringing", "created": "2026-10-01T14:02:09Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "call_id": "6f1c0a1e-…", "from": "+15125550142", "from_name": "Big Customer Inc",
    "did": "15125550100",
    "ringing": { "type": "queue", "number": "300", "label": "Support" }
  }
}

{
  "id": "evt_a07c…", "type": "call.ended", "created": "2026-10-01T14:05:48Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "call_id": "6f1c0a1e-…", "direction": "inbound",
    "from": "+15125550142", "from_name": "Big Customer Inc",
    "to": "100", "did": "15125550100", "extension": "101",
    "started_at": "2026-10-01T14:02:10Z",
    "answered_at": "2026-10-01T14:02:16Z",
    "ended_at": "2026-10-01T14:05:48Z",
    "duration": 218, "talk_seconds": 212, "answered": true,
    "missed": false, "blocked": null, "spam": null,
    "hangup_cause": "NORMAL_CLEARING"
  }
}

{
  "id": "evt_91d4…", "type": "call.missed", "created": "2026-10-01T14:02:35Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "call_id": "6f1c0a1e-…", "direction": "inbound",
    "from": "+15125550142", "from_name": "Big Customer Inc",
    "to": "100", "did": "15125550100", "extension": "101",
    "started_at": "2026-10-01T14:02:11Z",
    "answered_at": null,
    "ended_at": "2026-10-01T14:02:35Z",
    "duration": 24, "talk_seconds": 0, "answered": false,
    "missed": true, "blocked": null, "spam": null,
    "hangup_cause": "NO_ANSWER"
  }
}

{
  "id": "evt_5e20…", "type": "voicemail.new", "created": "2026-10-01T14:03:02Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "voicemail_id": 377, "mailbox": "101",
    "from": "+15125550142", "from_name": "Big Customer Inc",
    "duration": 38, "received_at": "2026-10-01T14:03:02Z"
  }
}

{
  "id": "evt_c6a9…", "type": "fax.received", "created": "2026-10-01T15:12:40Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "fax_id": 52, "from": "+15125550177", "to": "+15125550110",
    "fax_number": "Orders", "pages": 3, "complete": true,
    "received_at": "2026-10-01T15:12:38Z"
  }
}

{
  "id": "evt_2d77…", "type": "survey.completed", "created": "2026-10-01T16:40:12Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "call_id": "6f1c0a1e-…", "queue": "Support", "agent": "102",
    "caller": "+15125550142", "score": 5, "at": "2026-10-01T16:40:11Z"
  }
}

{
  "id": "evt_f4b8…", "type": "transcript.keyword", "created": "2026-10-01T16:52:30Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "kind": "recording", "id": 190, "uuid": "6f1c0a1e-…",
    "keywords": ["cancel"], "snippet": "…I want to cancel the order…",
    "caller": "+15125550142", "at": "2026-10-01T16:52:29Z"
  }
}

{
  "id": "evt_0a31…", "type": "port.updated", "created": "2026-10-02T09:15:00Z",
  "company": { "id": 1, "domain": "acme.projectpbx.net" },
  "data": {
    "request_id": 12, "status": "foc",
    "status_label": "Port date set", "numbers": ["+15125550100"],
    "carrier": "Example Carrier", "foc_date": "2026-10-09"
  }
}

Sample payloads with example data.

Signed

An X-4voice-Signature header carries a timestamp and an HMAC-SHA256 of the raw body, so you can reject forgeries and old replays.

Testable

Send a test event, rotate the signing secret or replay any delivery from the portal.

Public HTTPS

Each URL is checked when it is added and again at send time.

Only what you ask for

Each URL picks just the events it wants and signs with its own secret. Rotate the secret whenever you like.

14 days of history

Every delivery and every try is listed, with a Send again button for any of them.

Answer within 10 seconds

Reply with any 2xx and the event is done. A busy receiver is retried automatically.

Built to arrive

If your server is busy, we keep knocking.

Six tries per event, every one on the page, and a Send again button for any of them. Your first look at a problem is a list, not a mystery.

Right awayFirst try as the event happens
After 30 sSecond try
After 2 minThird try
After 10 minFourth try
After 1 hFifth try
After 6 hSixth try

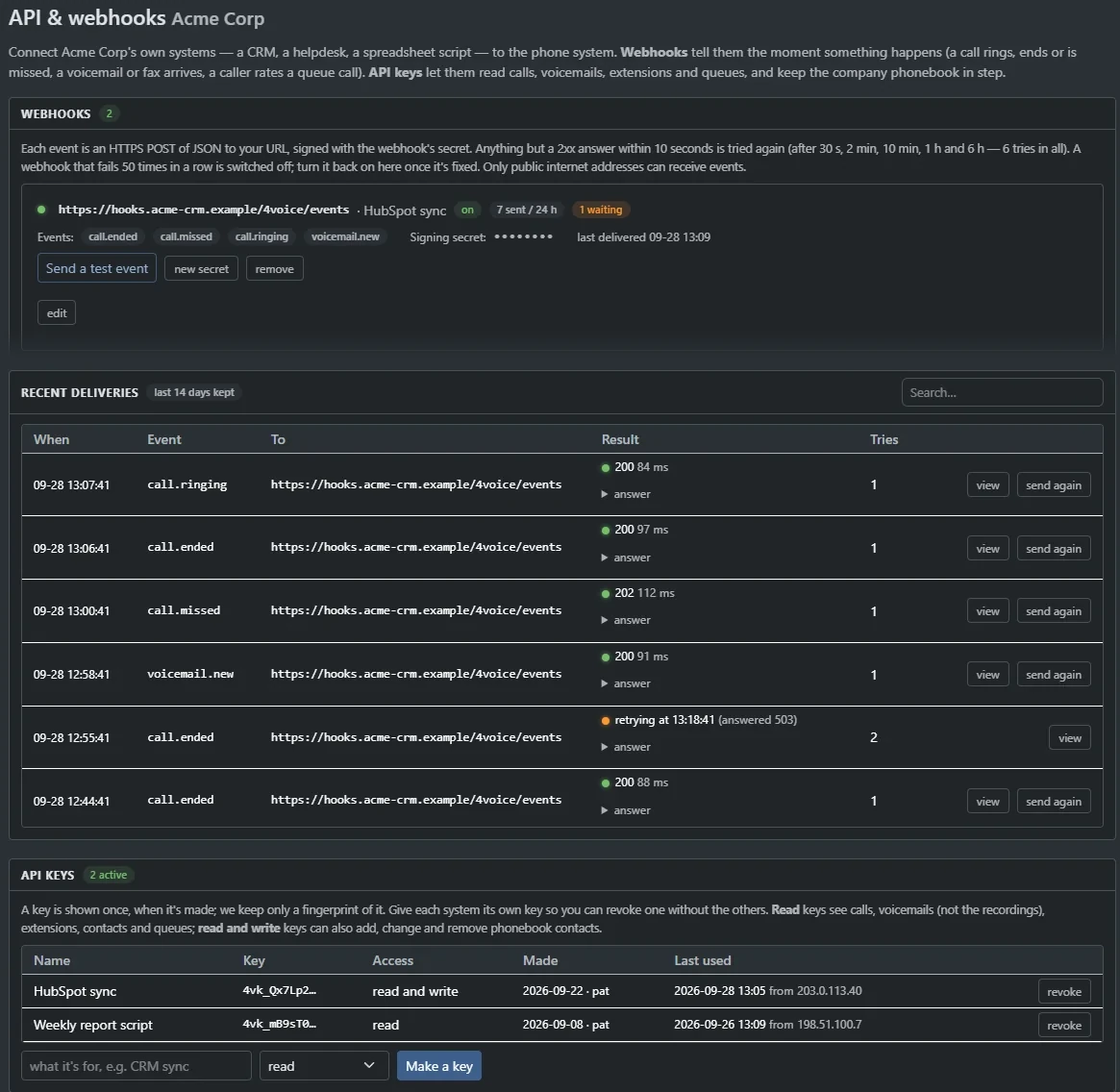

The API and webhooks settings page. A webhook with the events call.ended, call.missed, call.ringing and voicemail.new and a Send a test event button; a list of recent deliveries with their results, send again buttons and a retry in progress; and a table of API keys with their access and last use. — One webhook with its events, the recent deliveries and the API keys. Click it for the full screen.

Desk phones

Give a phone its address. It sets itself up.

Each Yealink, Polycom or Grandstream phone fetches its own settings from its own secret address. Lines, clock and passwords arrive ready, with programmable keys on Yealink and Polycom. Change a setting, then reprovision a whole company in one click.

Plug a phone in. Watch it set itself up.Live demo

Phone

1BootsPowers on and asks for its settings.
2Fetches its configFrom its own secret address, so only that phone can ask.
3RegistersSigns in as extension 101, Reception.
4Keys, wallpaper and clock setProgrammable keys sized to the model, your wallpaper, the right time zone.

Yealink101

Registered

101 Reception10:08

ReceptionFree
Sales 2Busy
SupportRinging
AccountsFree
DispatchOffline
Park 1Parked

Account readyThu 2 Oct

Phone activity log

00:00phone boots
00:01config requested
00:02config sent
00:03registered 101
00:04keys, wallpaper, clock set

StateReady

Each phone brand gets what its screen can show. Reprovision or reboot a whole company from one screen.

Every phone

Its own secret address, regenerated with a grace period
The right clock and time zone, daylight saving included
A managed web password
One-click reprovision and reboot

Yealink

Programmable BLF, speed-dial and park keys, sized to the model
Wallpaper on color screens, pushed to every phone
Approved firmware on the first provision
Company phonebook as the phone's directory
Distinctive ringing, as an add-on

Polycom

BLF, speed-dial and park keys, park lamps included
Distinctive ringing, as an add-on

Grandstream

Account and line configured for you

Run the whole fleet from one screen

Reprovision, reboot, set the clocks and read every phone's story, for a whole company at once.

Reprovision in one click

Re-pull settings on every reachable phone in a company, and see which ones answered.

Reboot the lot

Restart every phone from the same screen.

Clocks that are right

One NTP server pushed to every phone, a per-company override, and each extension's own time zone.

Activity log

Provisioning, firmware and registration events for every phone, searchable.

Two front doors

A primary and a backup are written to each phone as outbound proxies, so phones can fail over.

Encrypted phones

Off, Offered or Required per company: TLS signaling and SRTP audio.

Wallpaper

Your logo on every Yealink color screen.

Start with the 4voice logo, drop in yours, or fill the screen with a picture, then push it to every phone in the company. Each phone gets a wallpaper sized to its own screen.

T58 and T56 at 1024 × 600
T57, T48 and T49 at 800 × 480
T54 and T46 at 480 × 272
T33 at 320 × 240

Wallpaper previewLive demo

1024 × 600

T58 and T56: the logo sits lower, under the big idle clock.

Drawn to each screen's real proportions.

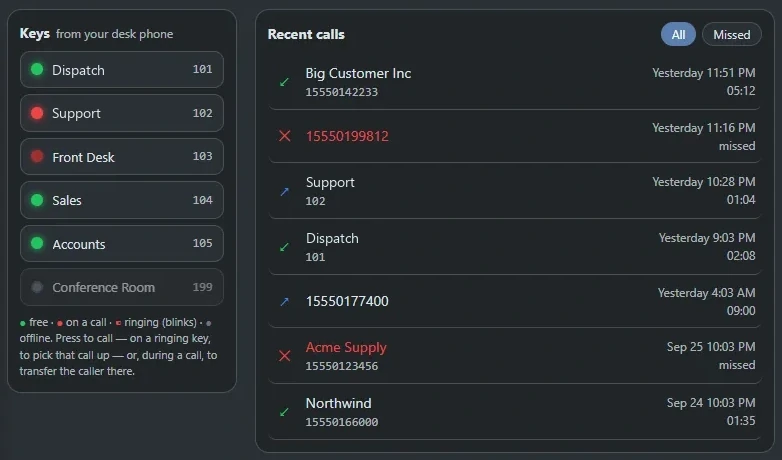

The browser phone's Keys panel, with five busy-lamp keys in green, red and gray and their extension numbers, beside a list of recent calls with the missed ones in red. — The browser phone shows up to 24 lamps, with recent calls beside them. Click it for the full screen.

Busy lamps

Press a lamp. Make the call.

Lamps refresh every 2 seconds. Press one to call that person, to blind-transfer the caller you are talking to, or to pick up a ringing call.

FreeGreen
BusySolid red
RingingBlinking red
OfflineGray

Desk phones get the same idea as programmable BLF, speed-dial and park keys: 27 keys on a T58 or T54, 29 on a T48, 2 on a T21. Park keys light on Yealink and Polycom phones.

Click-to-call

Every number is a call waiting to happen.

One click and your phone rings. Every number in the portal is a call waiting to happen, and so is every visitor on your website.

A Call me button that rings you firstLive demo

acme-widgets.example

Reception ringsShows Web call-me and the visitor's number
Reception answersThe call is yours
Visitor is dialedThrough your dialplan, with your caller ID
ConnectedBoth sides on the line

<script src="https://acme.projectpbx.net/callme/<token>.js" async></script>

Paste one script tag. Your phone does the rest.

A visitor types their number. Your extension or ring group rings first and the visitor is dialed when it answers; a queue or menu takes the visitor straight in.

Who rings first. An extension, ring group, queue or menu.
Opening hours. Your schedule, or always open, with a closed message in your words.
Websites allowed. Only the ones you list.
The button's words. Your heading, your button text.
Every request logged, with abuse limits built in.

Hours, sites and the button's own words

The call-me settings and the log of recent requests.

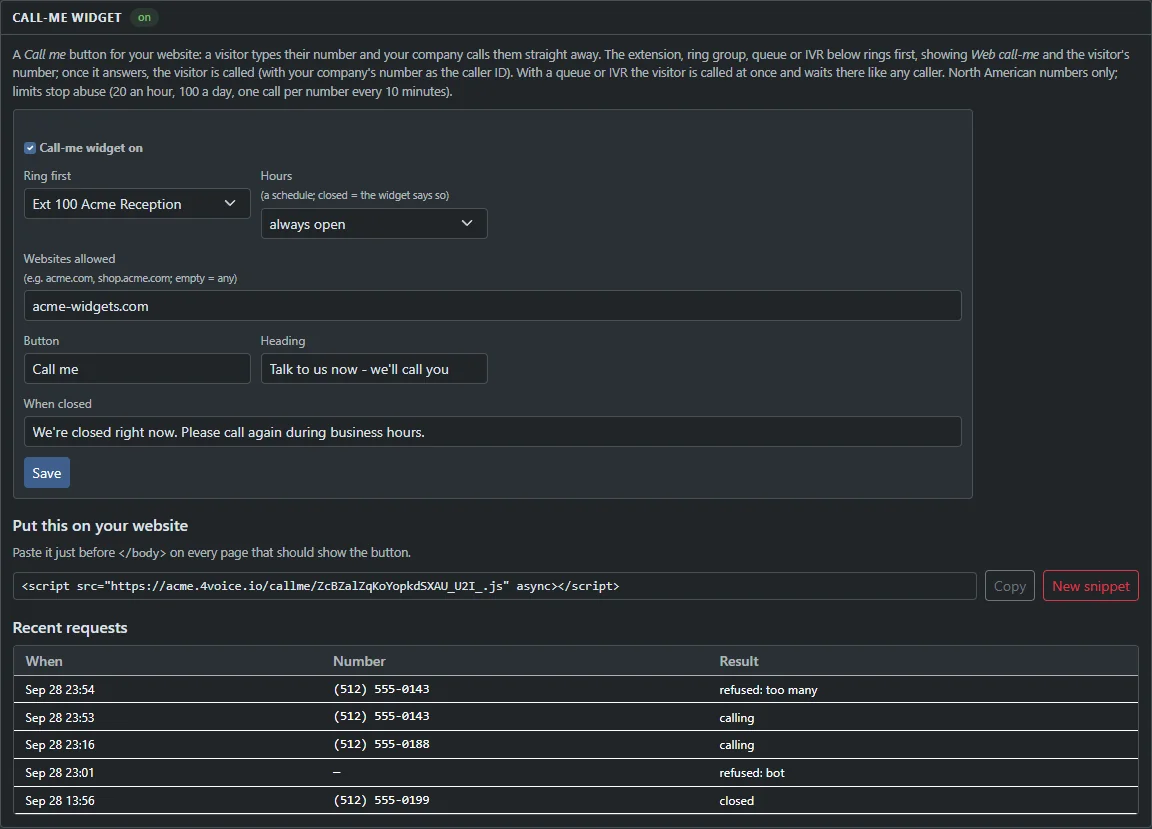

The call-me widget settings: who rings first, the hours, the websites allowed, the button and heading words and the closed message, then the script tag to paste and a table of recent requests with their results.

Click a number. Pick up. It dials.

A phone button sits beside numbers in Call records, Voicemail, Recordings and the Phonebook. Your own phone rings first, showing who you are calling. Pick up and the call goes out exactly as if you had dialed it: your caller ID, your call limits, your recording rules.

The call records table with a small phone button beside each number, and a message in the corner: your phone is ringing, pick it up to call the number. — Press the phone button and your own phone rings first.

From your CRM. A https://<portal>/phone?dial={number} link opens the browser phone with the number filled in.
From your code. POST /calls with an extension and a number rings that extension first.
Guarded. Emergency numbers go through the phone itself, and each extension can start up to 6 a minute.
